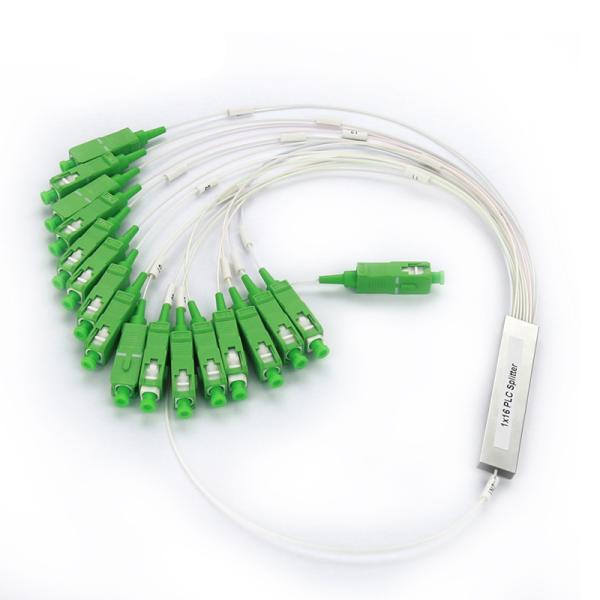

SC APC 1 x 16 MINI fiber optic splitter PLC for FTTH internet application
The fiber optic splitter is one of the most important passive devices in the optical fiber link. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light. As a result, PLC splitters offer accurate and even splits with minimal loss in an efficient package.It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
| 1×16 Single Mode PLC Splitter Data Sheet |
| Operating Wavelength(nm) |
1260-1650 |
Inspected Date |
2017/11/21 |
| P/N: |
1x16-PLC-0.9-1.0 |
S/N: |
1711116001 |
| Fiber Type |
G.657A with 0.9mm lose tube |
Fiber Length(m) |
≥1.0 |
| Connector Type |
SC/APC |
Package Dimension(mm) |
60×12×4 |
| Storage Temperature |
-40~+85℃ |
Operating Temperature |
-40~+85℃ |
| Item |
IL(dB) |
PDL(dB) |
RL(dB) |
| Wavelength(nm) |
1310 |
1550 |
1310 |
1550 |
1310 |
1550 |
| Spec. |
MAX13.6 |
MAX 0.25 |
≥55 |
| Port1 |
13.11 |
13.34 |
0.03 |
0.03 |
Pass |
Pass |
| Port2 |
13.26 |
13.41 |
0.03 |
0.03 |
Pass |
Pass |
| Port3 |
13.28 |
13.15 |
0.04 |
0.03 |
Pass |
Pass |
| Port4 |
13.39 |
13.09 |
0.04 |
0.02 |
Pass |
Pass |
| Port5 |
13.35 |
13.03 |
0.03 |
0.04 |
Pass |
Pass |
| Port6 |
13.48 |
13.40 |
0.04 |
0.04 |
Pass |
Pass |
| Port7 |
13.33 |
13.45 |
0.03 |
0.02 |
Pass |
Pass |
| Port8 |
13.26 |
13.33 |
0.04 |
0.03 |
Pass |
Pass |
| Port9 |
13.02 |
13.33 |
0.03 |
0.04 |
Pass |
Pass |
| Port10 |
13.46 |
13.38 |
0.02 |
0.03 |
Pass |
Pass |
| Port11 |
13.27 |
13.25 |
0.02 |
0.04 |
Pass |
Pass |
| Port12 |
13.46 |
13.15 |
0.04 |
0.02 |
Pass |
Pass |
| Port13 |
13.24 |
13.17 |
0.04 |
0.03 |
Pass |
Pass |
| Port14 |
13.15 |
13.42 |
0.03 |
0.04 |
Pass |
Pass |
| Port15 |
13.32 |
13.44 |
0.03 |
0.03 |
Pass |
Pass |
| Port16 |
13.02 |
13.19 |
0.03 |
0.03 |
Pass |
Pass |
| Input |
N/A |
Pass |
Pass |
| MAX. |
13.48 |
13.45 |
0.04 |
0.04 |
N/A |
| MIN. |
13.02 |
13.03 |
0.02 |
0.02 |
N/A |
| Average |
13.28 |
13.28 |
0.03 |
0.03 |
N/A |
| Uniformity(≤1.0dB) |
0.46 |
0.473 |
Directivity(dB) |
≥55 |
Application
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks
Feature
PC,UPC,APC polishing available
High returen loss
Low insertion loss
High reliability and stablity
Available foe singlemode/multimode and simplex/duplex
0.9mm,2.0mm,3.0mm diameter cable available
- Adopt high strength stainless steel, pass salt spray test
- Ferrule core is less than 0.5um
- Adopt 100% new raw material, ROHS compliance
- Low Insertion loss
- Low PDL Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃
